Product Details
Description

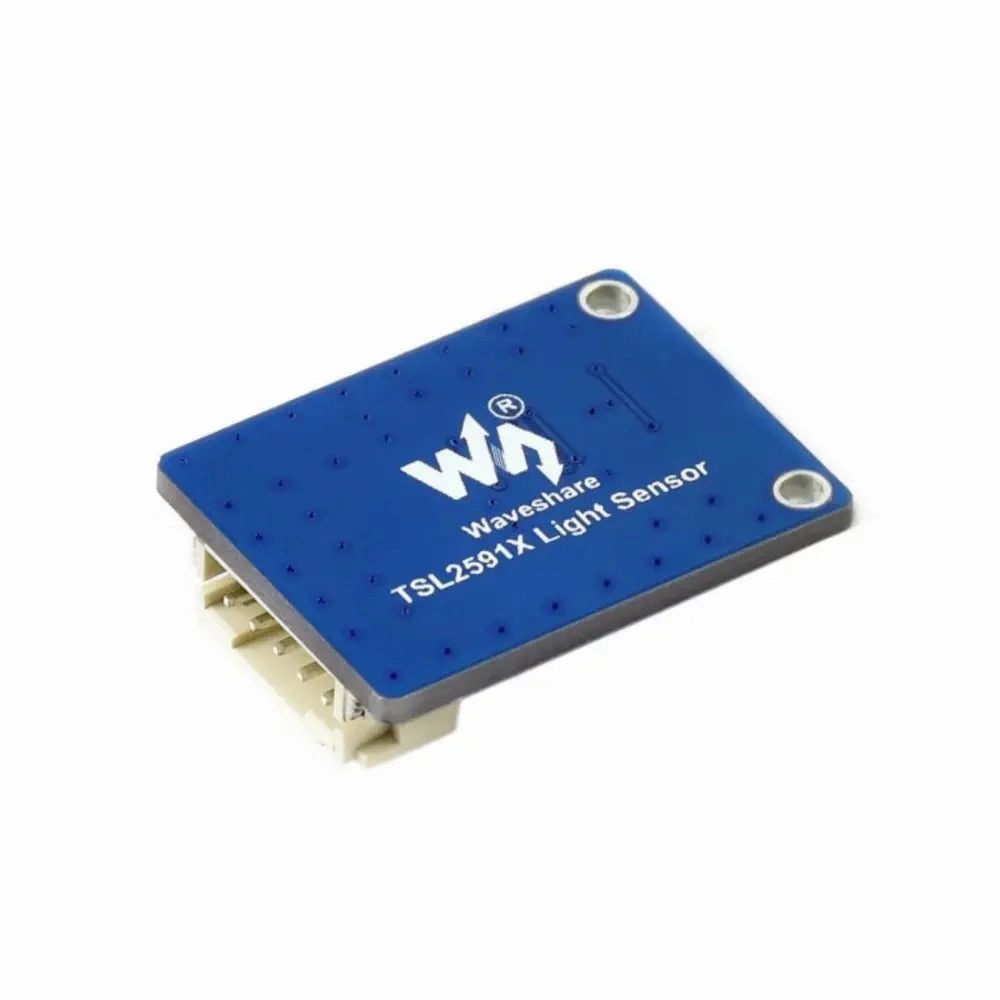

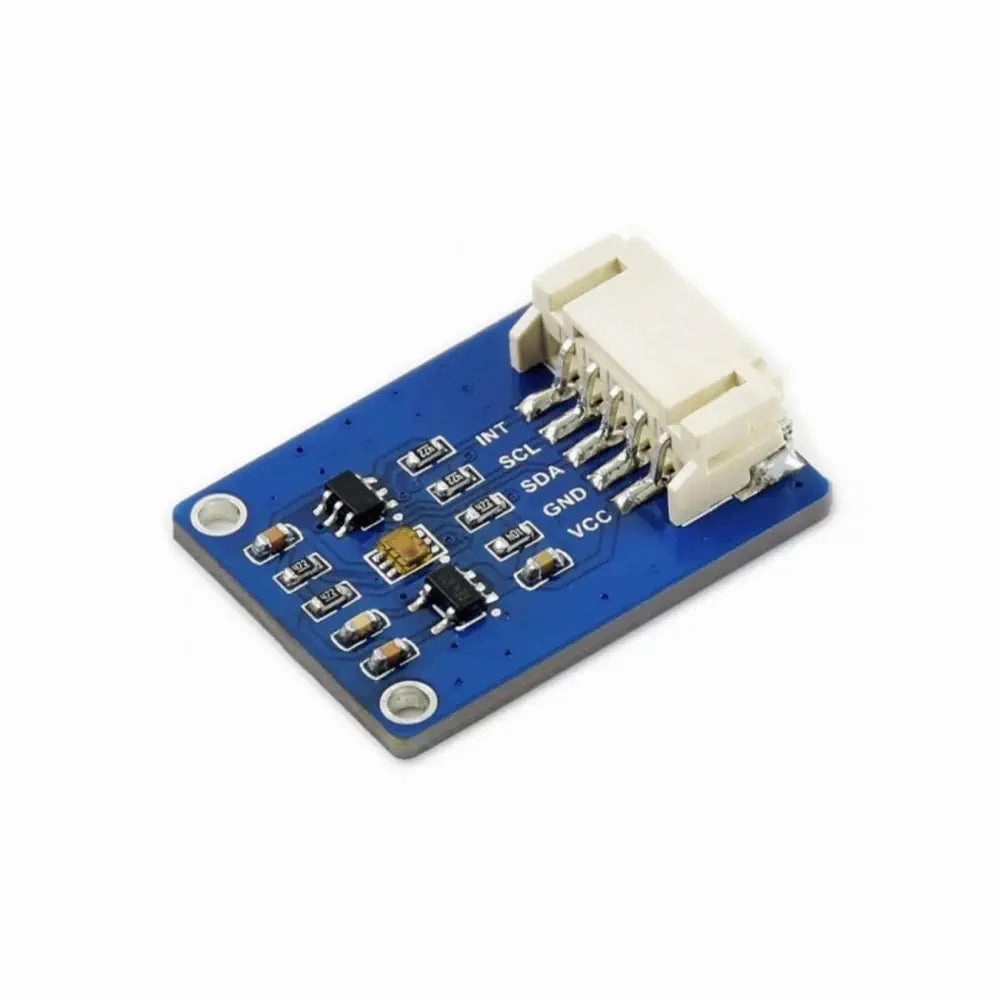

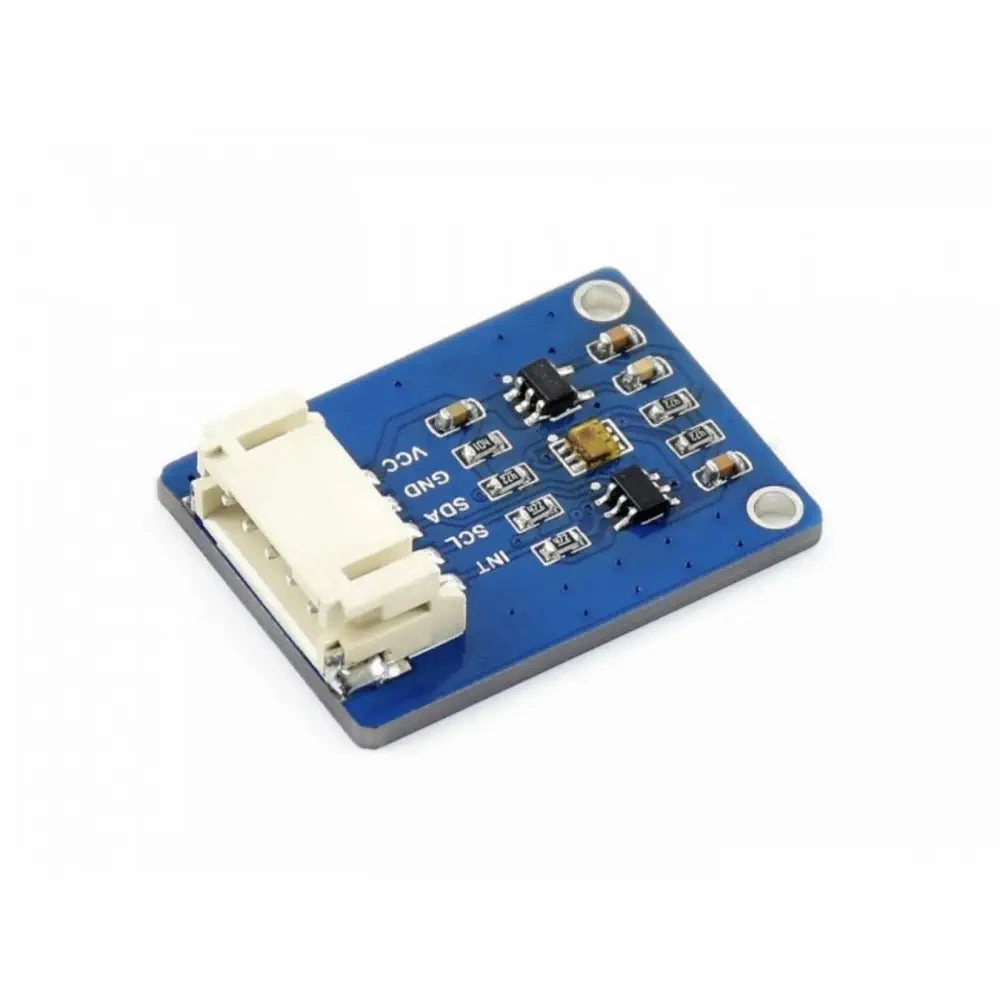

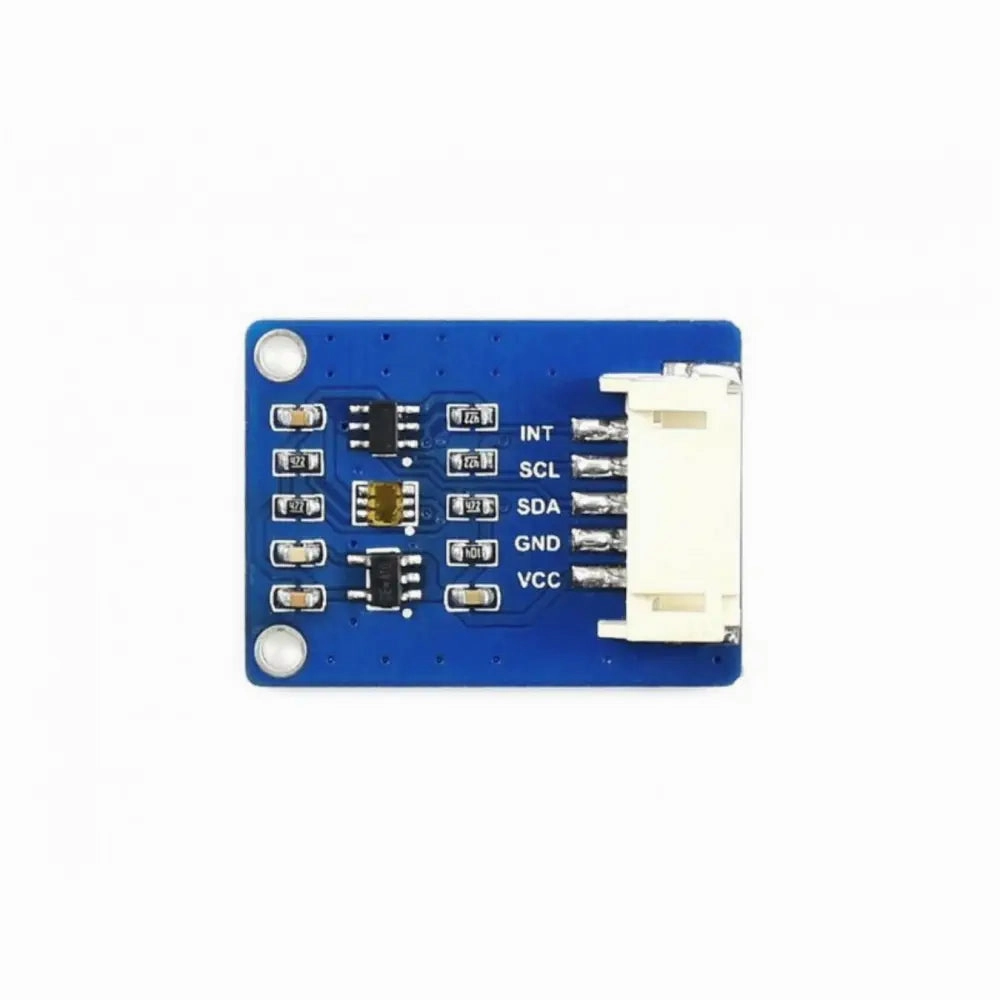

Waveshare TSL25911 High Sensitivity Digital Ambient Light Sensor I2C
Offers an onboard voltage translator
Features 600M:1 wide dynamic range
Measures infrared plus visible light
Provides interrupt output with programmable upper and lower thresholds
Compatible with 3.3 V / 5 V operating voltage
The Waveshare TSL25911 High Sensitivity Digital Ambient Light Sensor I2C is a high sensitivity digital ambient light sensor module based on TSL25911, features a 600M:1 wide dynamic range, detects light intensity up to 88.000 Lux, controlled via an I2C interface, low power consumption.
It is capable of operating across various light environments.
1 x TSL25911 Light Sensor

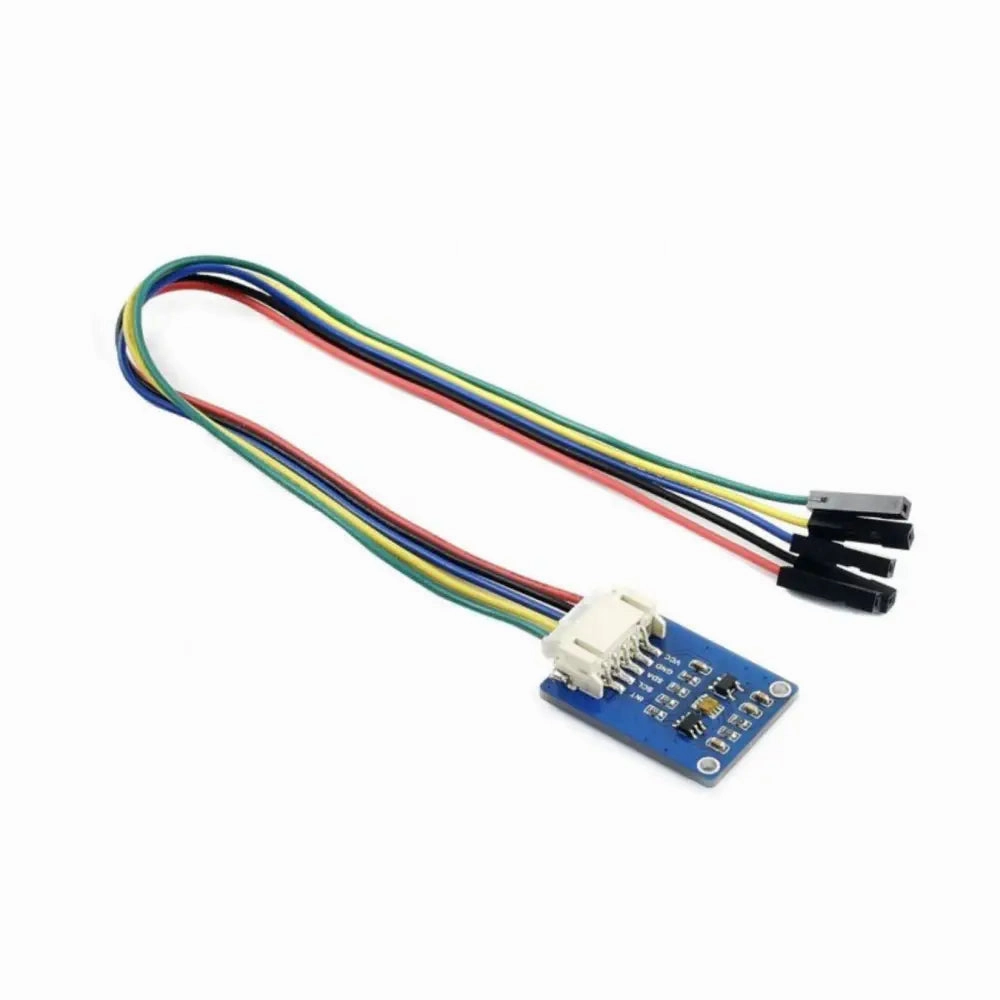

1 x PH2.0 5-Pin wire
Size
27 x 20 mm
Mounting hole: 2 mm
Light sensor: TSL25911FN
Communication interface: I2C (constant address: 0x29)
