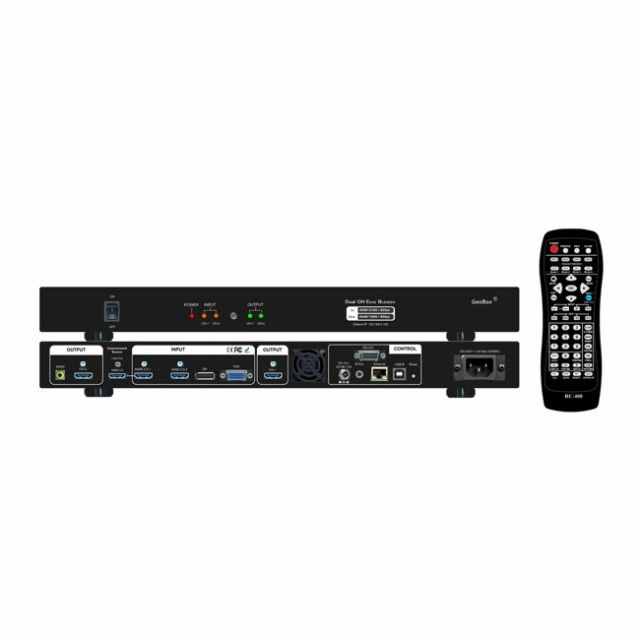

VigilLink G812 Dual Channel Edge Blender
Introducing the G812: Your Ultimate Professional Curved Screen Edge Blending Processor!
Elevate your visual experiences to new heights with the G812, a cutting-edge dual-channel processor meticulously designed to handle the most demanding tasks in the world of visuals. From sophisticated edge blending and image warping to seamless projection mapping, the G812 is your go-to solution for achieving unparalleled visual excellence.
Powerful Inputs and Outputs
Featuring four inputs, including 2x HDMI, 1x DP, and 1x VGA, the G812 ensures that you have the flexibility to connect various sources effortlessly. With support for resolutions up to 7680x1200 @30Hz and 4096x2160 @60Hz with 4:4:4 full-color sampling on input and up to 2048x1080 @60Hz on output, the G812 delivers pristine visuals that leave a lasting impression.
Advanced Processing Capabilities
The G812 boasts a 10-bit high-end processor, motion adaptive de-interlace, low-angle smooth algorithm, and 3:2/2:2 pull-down, ensuring that your content looks its best. This processor also supports non-VESA standard input timing, making it compatible with various input sources.
Unleash Your Creativity with Advanced Warp Technology
Our advanced warp technology, seamlessly integrated into the G812, allows you to easily perform intricate geometry alignment and curved screen edge blending. Whether you prefer using the remote controller, WebGui, USB, or Ethernet, you have complete control over your visuals. You can fine-tune your settings precisely, thanks to a maximum of 17x9 grid control points with 120x68 pixel position adjustments. Plus, our Linearity Grid Line Adjustment and "W" type Corner Wall image adjustment brings a new level of versatility to your geometry alignment needs.
Exceptional Color Control
Achieve the perfect color balance with separate RGB gamma correction for edge blending color fine-tuning. The G812 also supports individual color correction for each output and ensures fine pixel color uniformity. We've included 9 regions for non-edge blending area black level uplift for those moments when you need precise control.
Seamless Connectivity and Video Wall Function
With HDMI 2.0 loop-out support, you can create expansive display setups by daisy-chaining multiple units all the way up to 7680x1200 @30Hz. The G812 simplifies the process with its video wall function, allowing you to crop and allocate source images for each projector and set overlap pixels for flawless edge blending. Say goodbye to the complexities of PC software, video distributors, and splitters.
Customize Your Experience with Programmable EDID
The G812 offers programmable EDID and non-VESA standard input support, allowing you to create custom EDID timings between 1024x768 and 3840x2400, optimizing your video performance like never before.
Efficiency and Reliability
Replace costly projectors easily, as the G812 supports low-cost projectors without needing lens shift, warp, or edge blending. Its straightforward configuration, low entry barrier, cost-effectiveness, and unwavering reliability make it the ideal choice for professionals seeking a flexible visual solution.
Dual Power Supply Options
Equipped with a dual power supply system, the G812 accommodates both AC power (100V-240V) and DC power (12V 2A) with an external DC 12V power adapter. You'll even have access to one DC 12V 1A output for signal extension when using AC power. Your standard delivery includes an AC power cord for immediate setup.
Unleash the potential of your visual content with the G812. Elevate your experiences and explore a world of possibilities in edge blending, image warping, and projection mapping.
Welcome to the future of visuals??welcome to the G812.
Featured Highlights:
With popular USB-C interface
APEdge blending
Up to 120??68 points of geometric alignment for sophisticated image warping.
Embedded video wall function, no image splitter is required.
4K loop out port for daisy chain connection in cascade application.
Easy configuration via IR remote, PC tool, or WebGUI.
?
