MMA8451 GY-45 Module Digital Triaxial Accelerometer Precision Tilt for Arduino
$14.90
$0.00
Save: $
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details

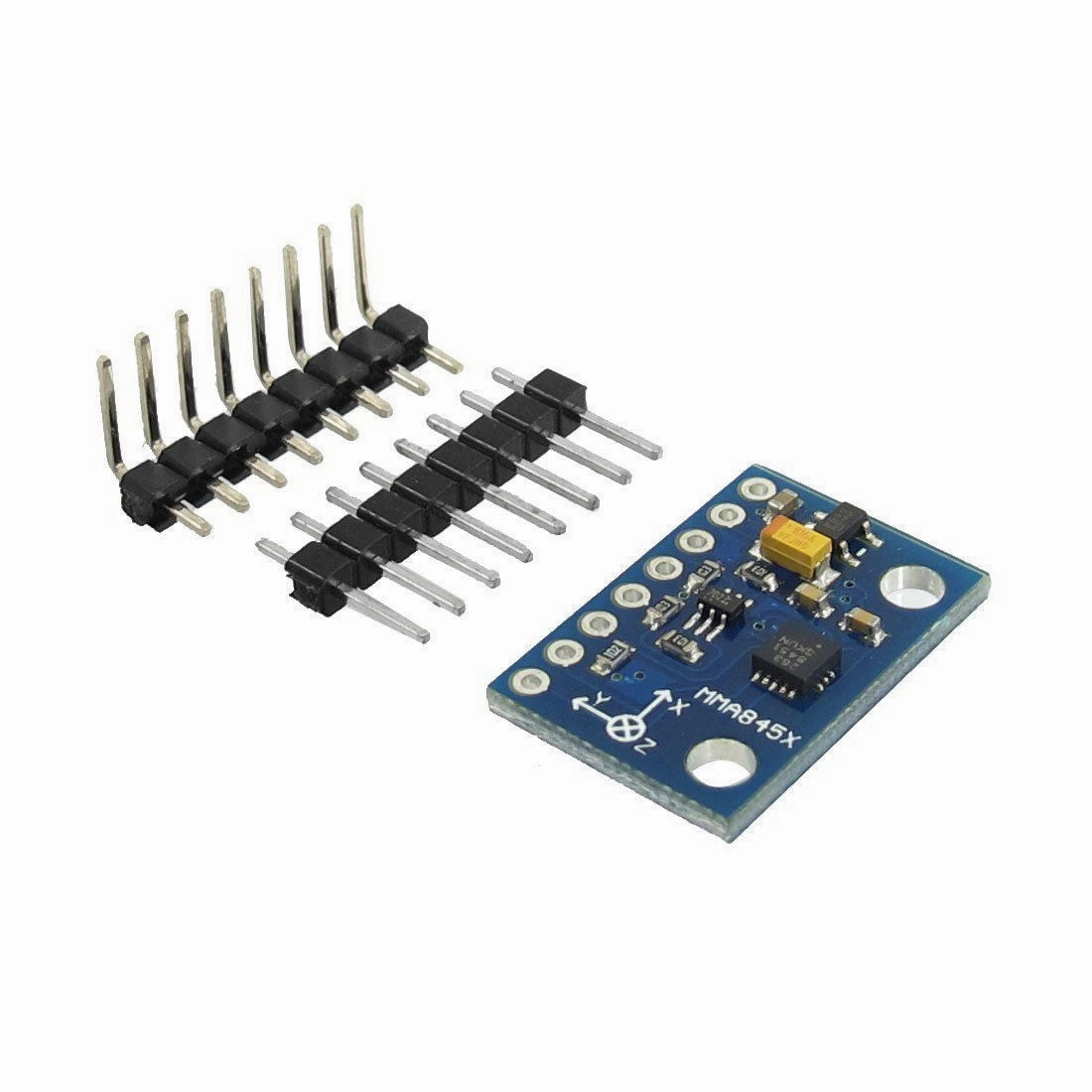

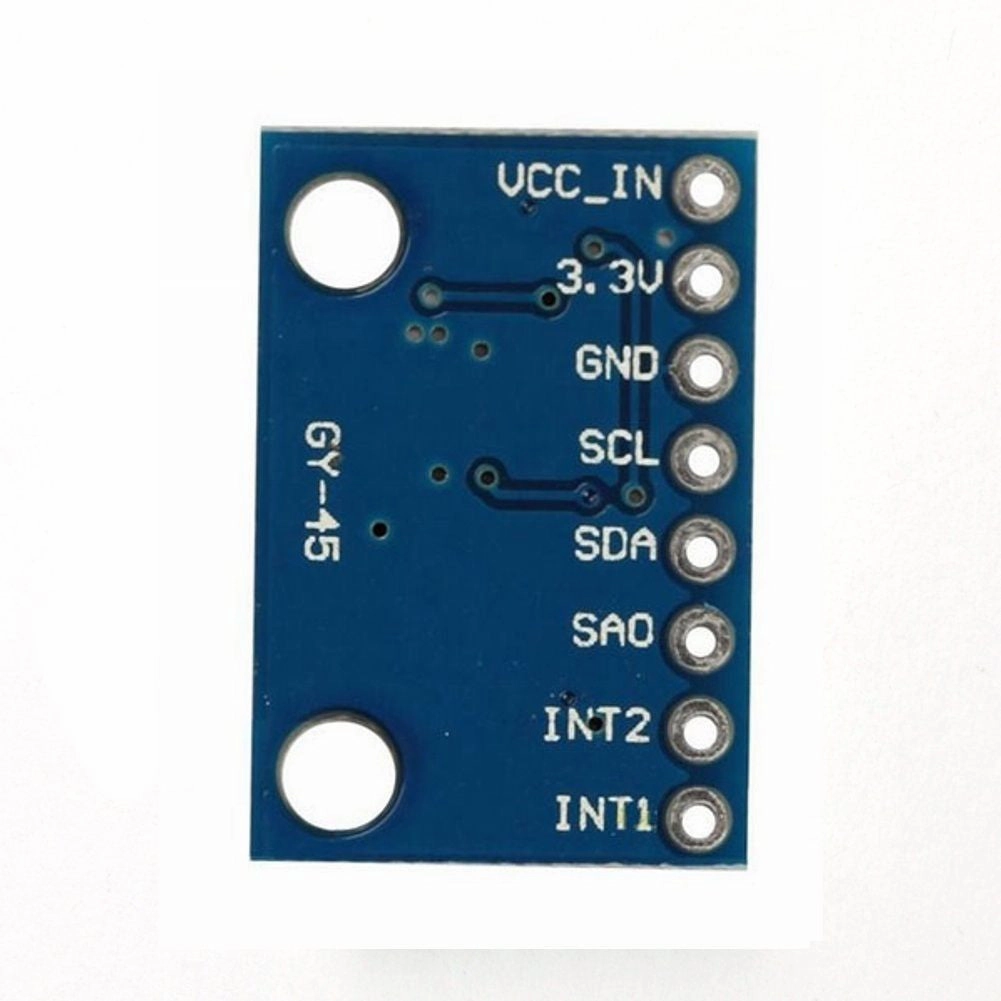

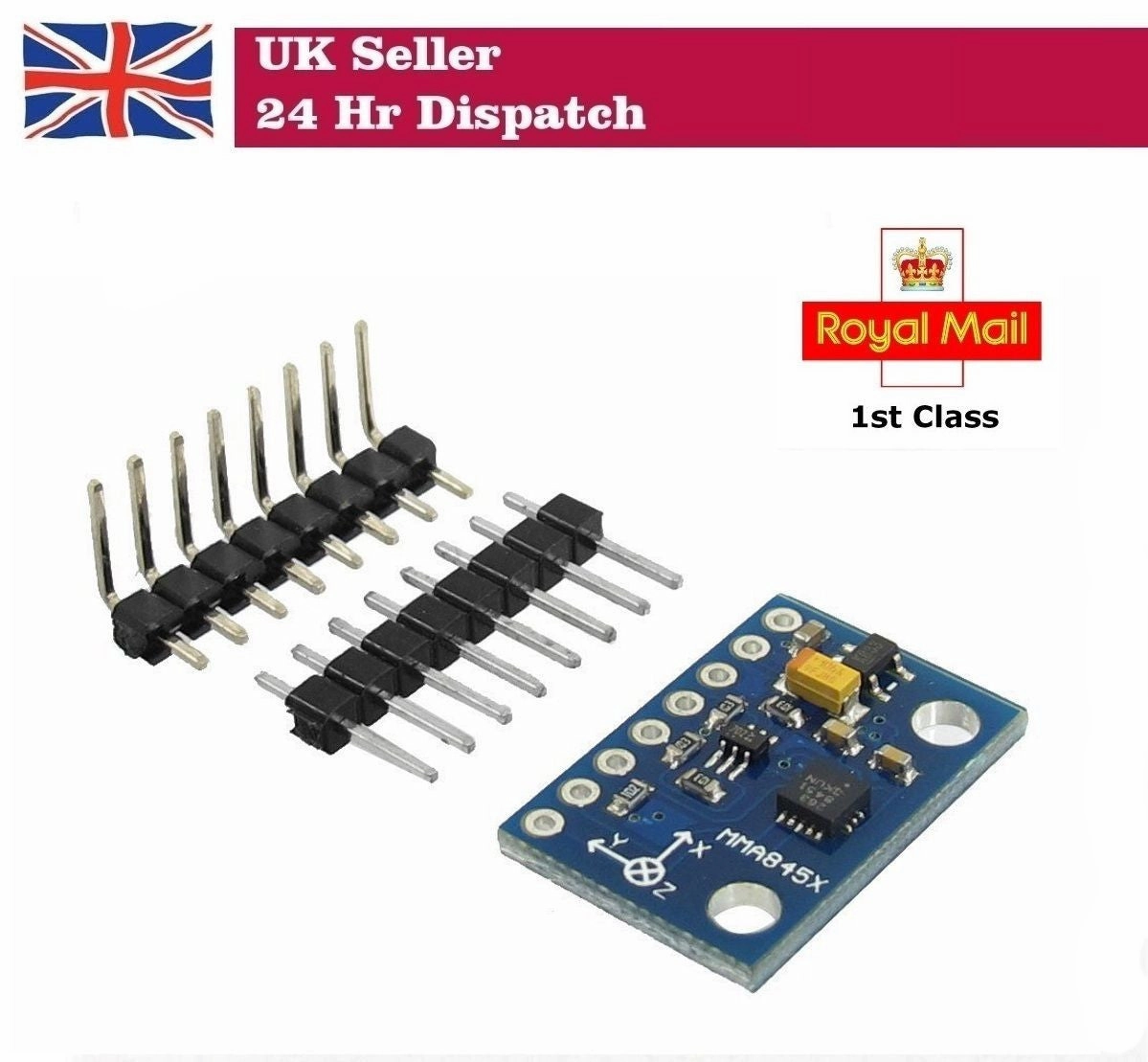

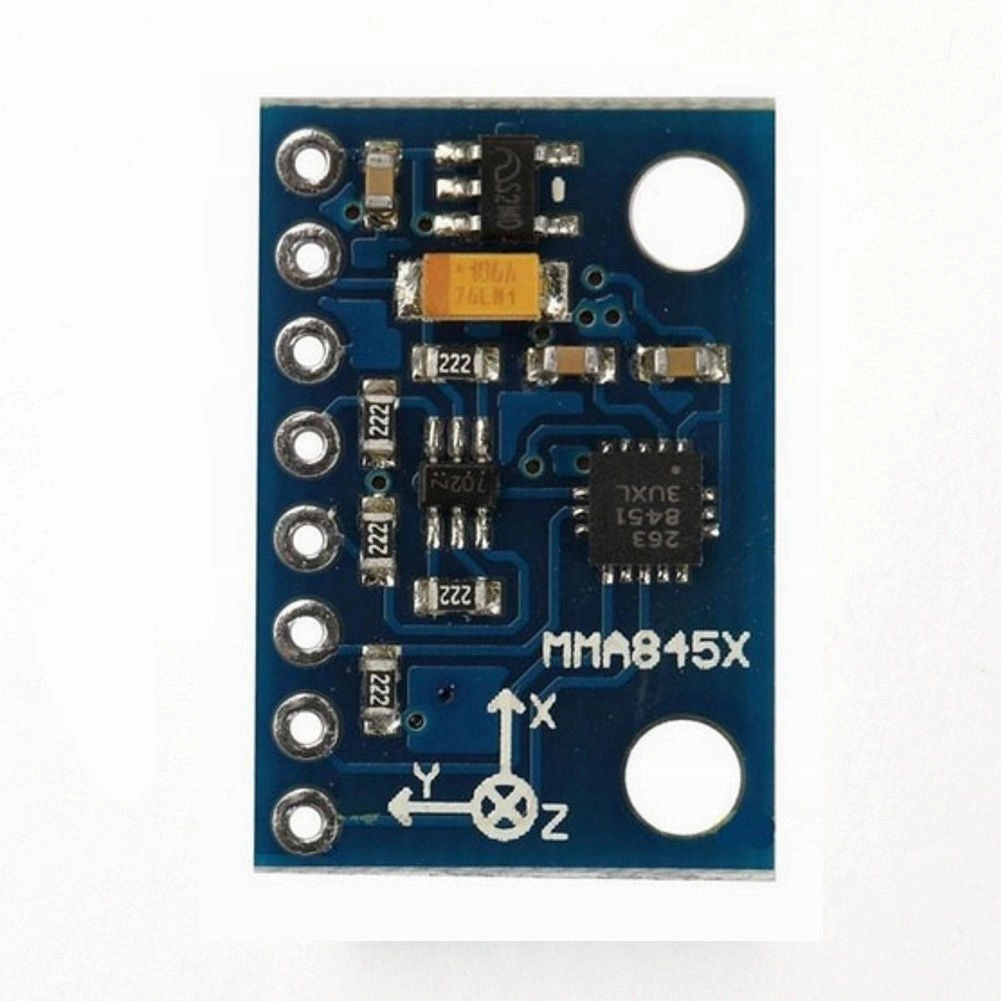

MMA8451 GY-45 Module Digital Triaxial Accelerometer Precision Tilt for Arduino
Description: MMA8451Q is a 14-bit resolution with a smart low-power , three-axis , capacitive micromachined accelerometer. The acceleration sensor embedded with rich functionality , user-programmable options with flexible and can be configured with up to two interrupt pins . Embedded interrupt function can save the overall power consumption , relieve the burden on the host processor constantly polling data . Along with low-pass filtering the data access functionality and high- pass filtering of data, data analysis may be required to minimize , in order to achieve shake detection and rapid response . The device can be configured to use any combination of configurable features embedded inertial wake-up interrupt signal is generated , which makes MMA8451Q monitoring events while at rest to maintain a low -power mode . Specifications feature:
I2C digital output interface ( when the pull-up resistor of 4.7 K, the highest frequency up to 2.25 MHz) Power supply:3-5v Size:20.5mm x 14.5 mm(L x W) Hole size: 3mm Hole center distance:15mm
Package content: 1 x MMA8451 GY-45 Digital 3-Axis Acceleration Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation.
