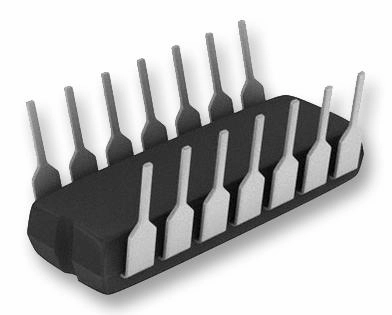

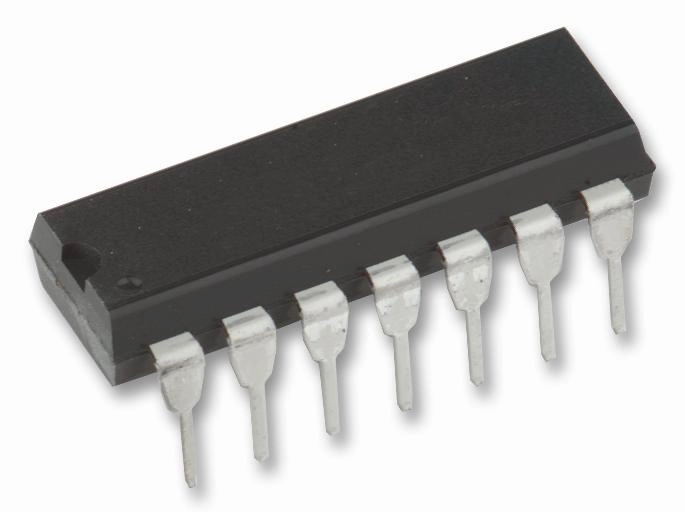

Name: Microchip PIC16F676-I/P 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 1.75 KB 14 Pins DIP
SKU: 816105

Microchip PIC16F676-I/P 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 1.75 KB 14 Pins DIP

$ 279.74

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The PIC16F676-I/P is a 8-bit Flash-based CMOS Microcontroller features 1 comparator and 128 bytes of EEPROM data memory. The PIC16F676 has a watchdog timer that is controlled by configuration bits. It runs off its own RC oscillator for added reliability. There are two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in reset until the crystal oscillator is stable. The other is the Power-up Timer (PWRT), which provides a fixed delay of 72ms (nominal) on power-up only, designed to keep the part in Reset while the power supply stabilizes. There is also circuitry to reset the device if a brown-out occurs, which can provide at least a 72ms reset. With these three functions on-chip, most applications need no external Reset circuitry.

Programmable pull-up resistors
MPLABÂ® ICD-2 programming support or debugging support with optional header adapter
8 Oscillator selections including 4MHz RC oscillator with programmable calibration, power-on reset
Power-saving sleep mode
Interrupt-on-pin change
Individual programmable weak pull-ups
Programmable code protection
High endurance flash/EEPROM cell

Applications

Automotive, Industrial, Consumer Electronics

Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F676-I/P
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
