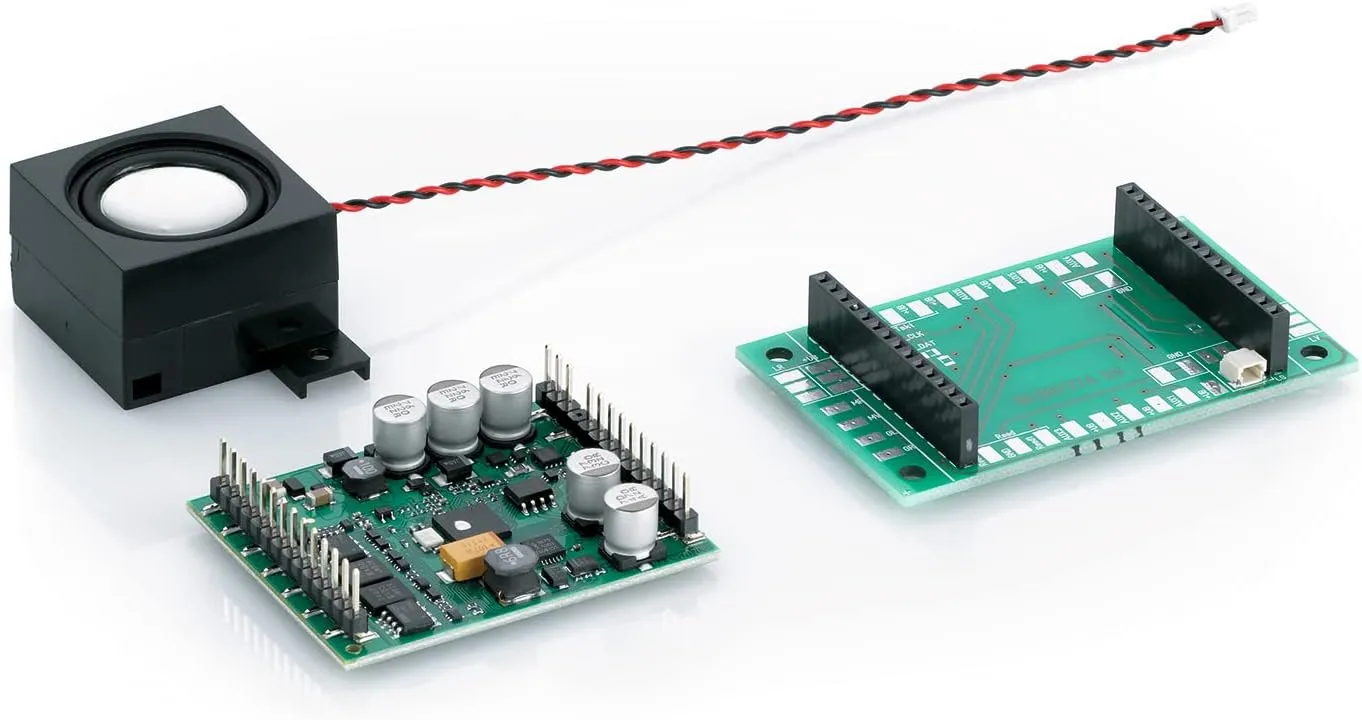

LGB Retrofit Sound Decoder This decoder is suitable for use in digital mode (DCC, mfx) as well as in analogue mode (DC). All LGB engines from year of manufacture 2014 can be converted with the 28-pin interface. Many vehicles with the old 10-pin interface can be converted using the interface adapter 55529. Vehicles without interface can be converted using the enclosed interface board, size of the interface board approx. 65mm x 40mm In addition, a speaker box is included, but other speakers suitable for the electrical values can also be connected. Compared to the previous decoder, the performance data has been significantly increased, and it offers much more functions and programming options. With the Märklin decoder tool (-nachruest-decoder-mld3msd3/mdecodertool-mdt3/), the decoder can be easily programmed and adapted to individual needs. Via the Internet there is the possibility to access the extensive sound library, which has been added to a variety of well-known LGB models and is constantly being expanded. Technical data: total load capacity max. 10 A, motor output> 4 A - audio power (sound) 6.7 W/4 Ω - locomotive address 1-10239 programmable - 14 or 28 (128) driving levels - load control analogue and digitally adjustable to different locator types - parallel control for all light and function outputs - programmable flashing light and short-term These or other functions can be programmed with the Märklin central CS 2 and CS 3 as well as the Märklin Mobile Station.
