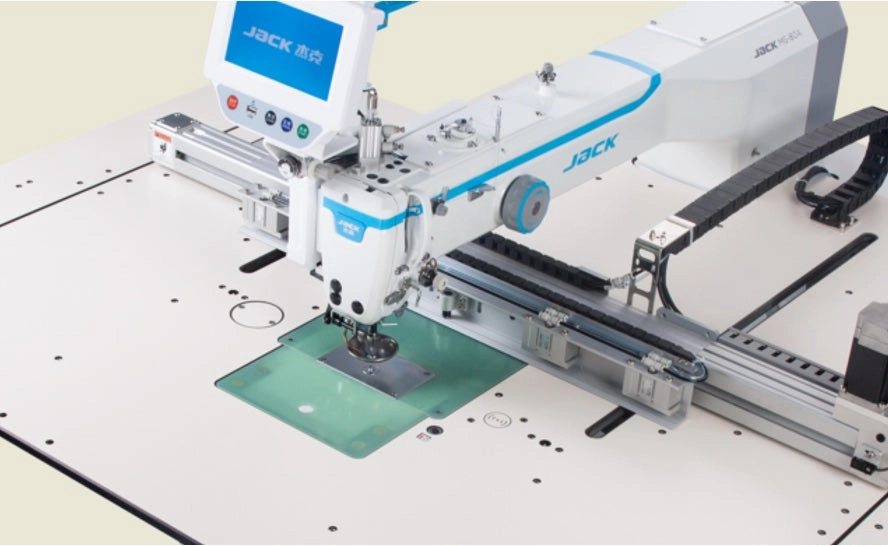

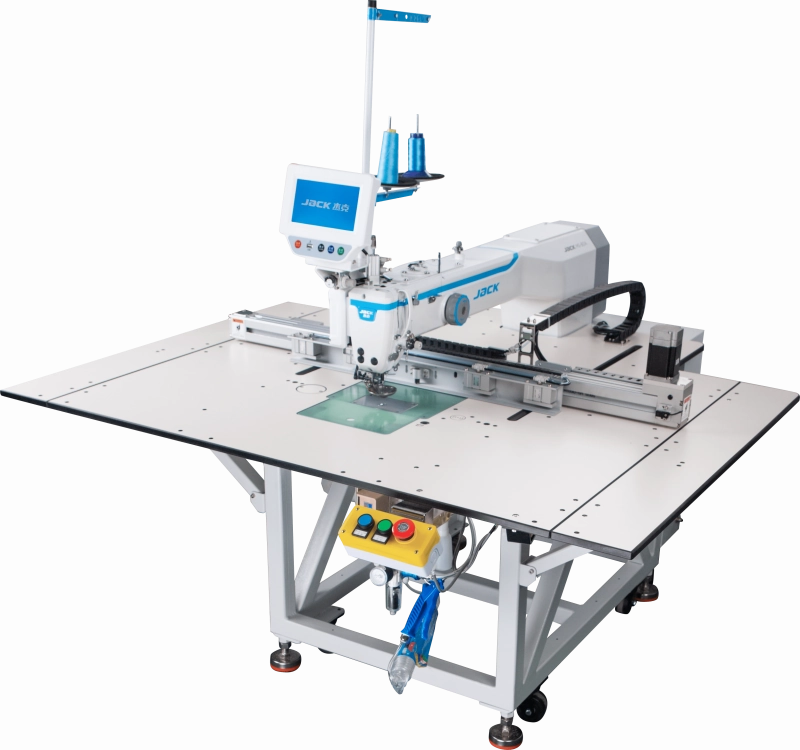

The Jack MG-80A is the newest large format programmable pattern sewing machine from Jack Sewing Machine Co. LTD. The MG-80A was created to bridge the gap between smaller pattern sewing machines such as the JK-T1906G and the larger shuttle hook designs like the JK-100040 which can be considered overkill for light-weight sewing applications.

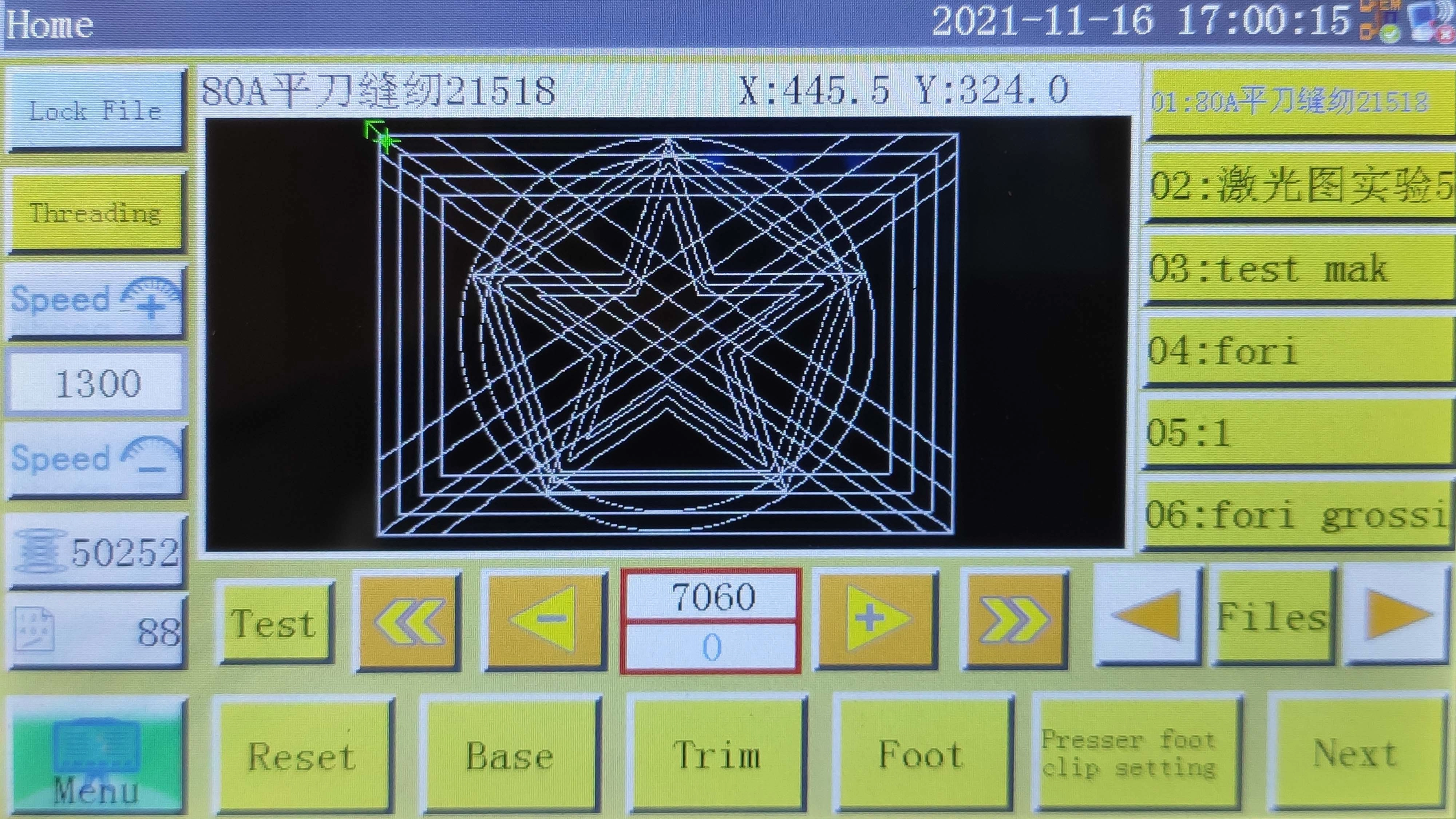

The MG-80A was created to be more economical than comparable shuttle hook designs while still maintaining all the features found in those same models. The MG-80A features a simplified LCD touch screen display to navigate saved designs as well as giving the operator the ability to make small changes on the fly without having to use a computer CAD software.
Like our other Jack pattern sewing machines, the MG-80A also includes our RFID system, allowing the machine to automatically recognize templates via RFID tags and pull up designs automatically. The machine also has an Intermediate Presser Foot System that allows the machine to sew varying thickness of materials without skipping seams or creating uneven stitches.
The MG-80A is perfect for recreating perfect seams for any applications from lightweight to heavyweight projects, simply by configuring the machine for DPX5 or DPX17 needle systems (from the factory).
This submodel does not include laser cutter.
Features:

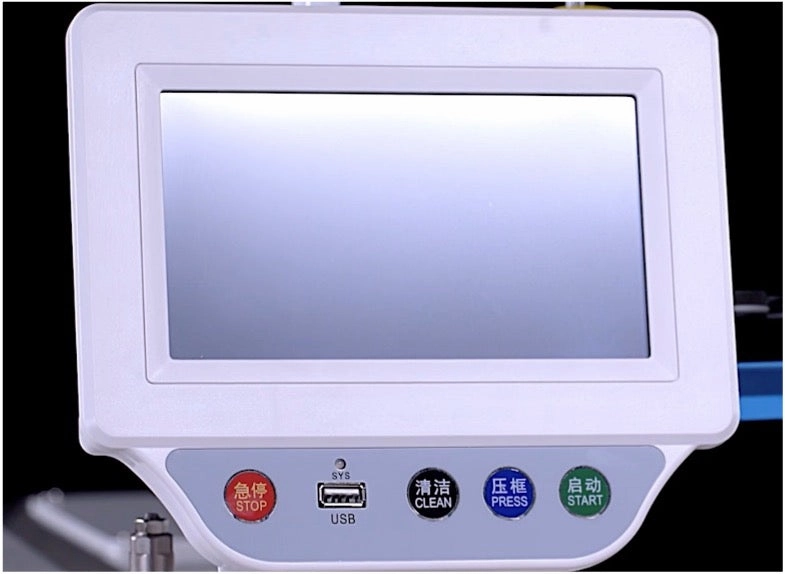

- Touch Screen Control Panel
- Direct Drive AC Servo Motor
- Pattern Template Clamping System
- Pattern Template RFID System

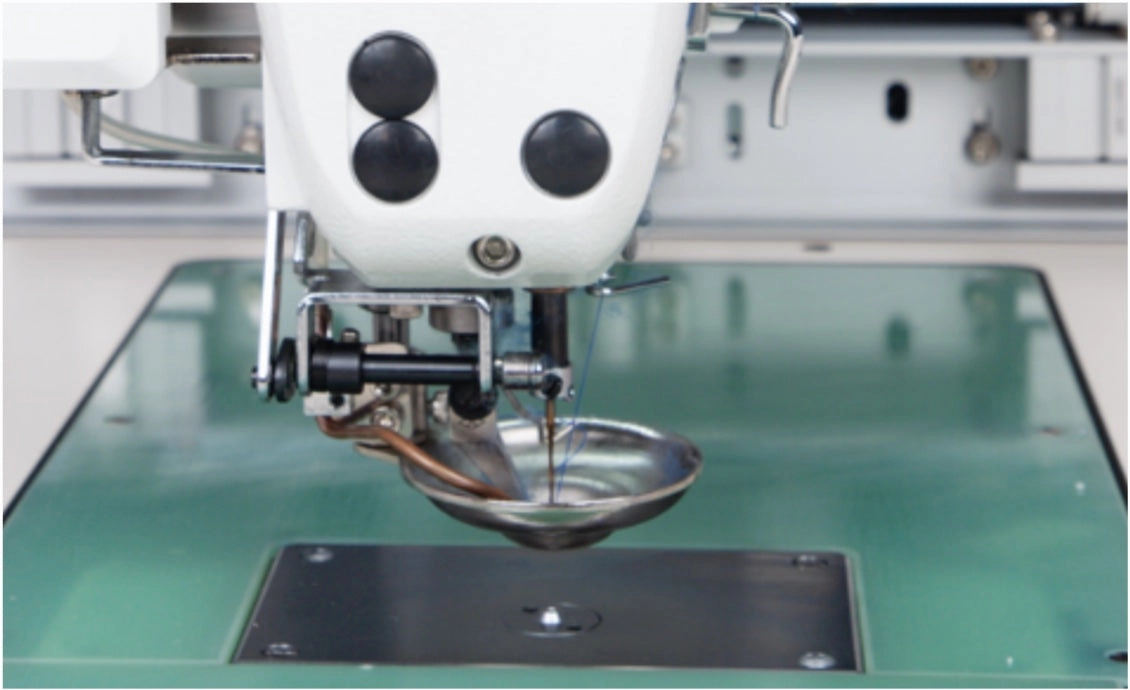

- Intermediate Presser Foot System
- Adjustable Sewing Speed
- User Programmable Patterns
- Bobbin Thread Detection System
- 800mm x 550mm Sewing Area
- Pneumatic Presser Foot Lifter
- Automatic Thread Trimmer
- Automatic Thread Wiper
- Integrated Bobbin Winder
- Integrated Adjustable LED
- WIFI Connectivity
- Complete with Table and Stand
- Free Technical Support (Online/Phone)
- First Template Design FREE
- Pattern Design Software Included FREE ($1000 Value)
- On Site Training (Optional)
- Template Design Services (Optional)
This machine is special order and can be configured to your specifications; please call or email for assistance in placing an order.
| Application: | Light-Medium Weight-Heavyweight |
| Feed Type: | Drop Feed |
| Max Speed: | 3200 SPM |
| Max Stitch Width: | NA |
| Motor Type: | Direct Drive AC Servo |
| Lubrication Type: | Minute-quantity |
| Presser Foot Height: | 15mm Stepper Motor |
| Needle Type: | DPX5 or DPX17 Size #7-23 |
