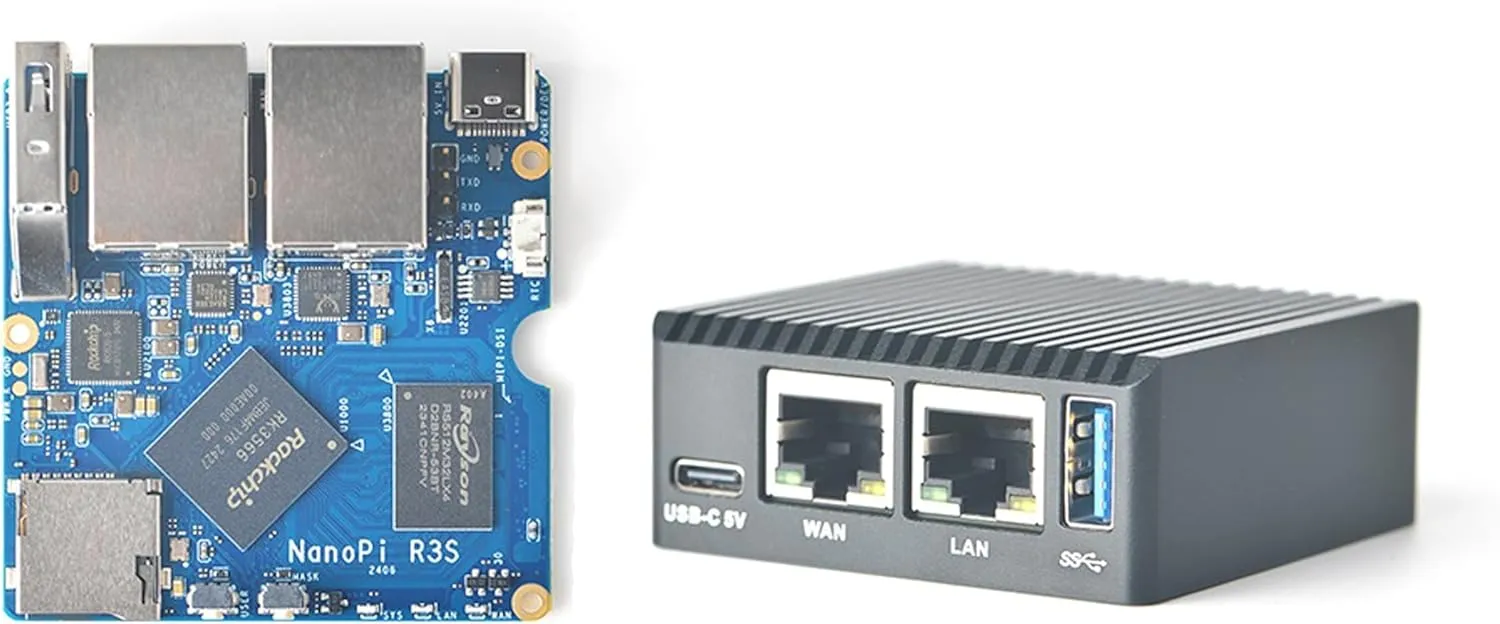

- IoT Development Platform: The NanoPi R3S mini router is an open source platform smart gateway with dual-Gbps Ethernet ports designed for IoT applications.It alsoi can work with Docker Applications.

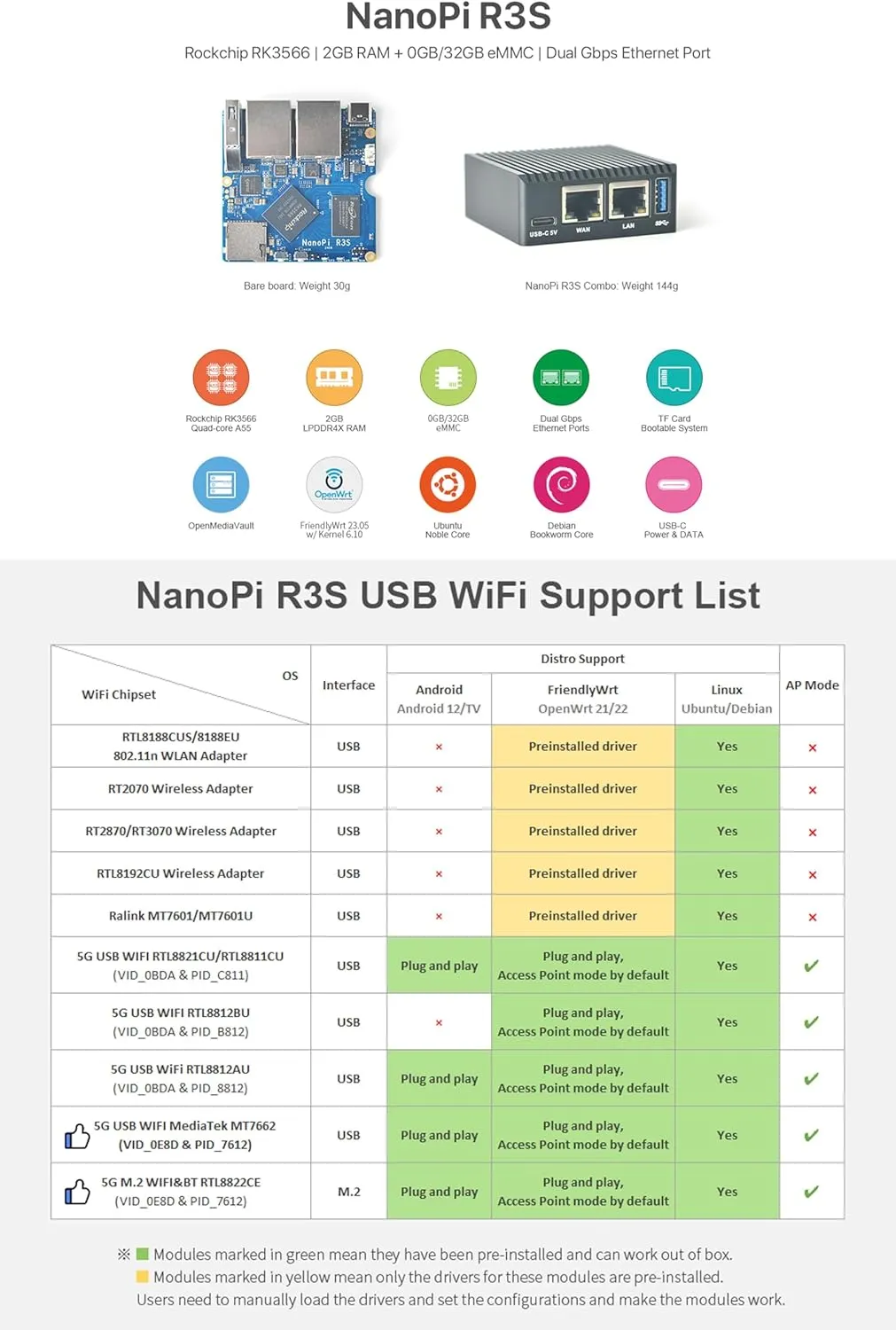

- Rockchip RK3566 SoC: The NanoPi R3S mini wifi router uses Rockchip RK3566 SoC (Quad-core Cortex-A55) with 2G LPDDR4X RAM, 0GB/32GB eMMC, FriendlyElec ported an OpenWrt system for it.support USB WiFi Module Adapter, check USB WiFi Device with Command Line Utility, Configure a USB WiFi Device as AP.
- Peripheral Interface: 1x Native Gigabit Ethernet, 1x PCIe Gigabit Ethernet, 1x USB3.0 Type-A, 1x MicroSD Slot, 1x Debug Serial Port，Display: 1x MIPI-DSI 30-Pin FPC connector, 1x USB-C 5V/2A input，Size：62x62x25mm.
- Support NAS Applications: The NanoPi R3S mini wifi router can be optionally equipped with an integrated CNC anodized aluminum case and a 2-inch LCD screen for status monitoring. It is a good platform for developing IoT applications, NAS applications etc.
- OS/Software Support: The NanoPi R3S smart gateway support Linux, U-boot, Ubuntu-Core, Debian-Core, OpenMediaVault, OpenWrt system. It works with Docker CE.
- Support Developed Compiled: If you need to develop and compile,you need a computer that can connect to the Internet. It is recommended to install Ubuntu 20.04 64-bit system and use the initialize the development environment, or use docker container.
- SDK Document Support: Getting Started "wiki.friendlyelec.com/wiki/index.php/NanoPi_R3S#Get_Started". Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click WayPonDEV store and ask a question.

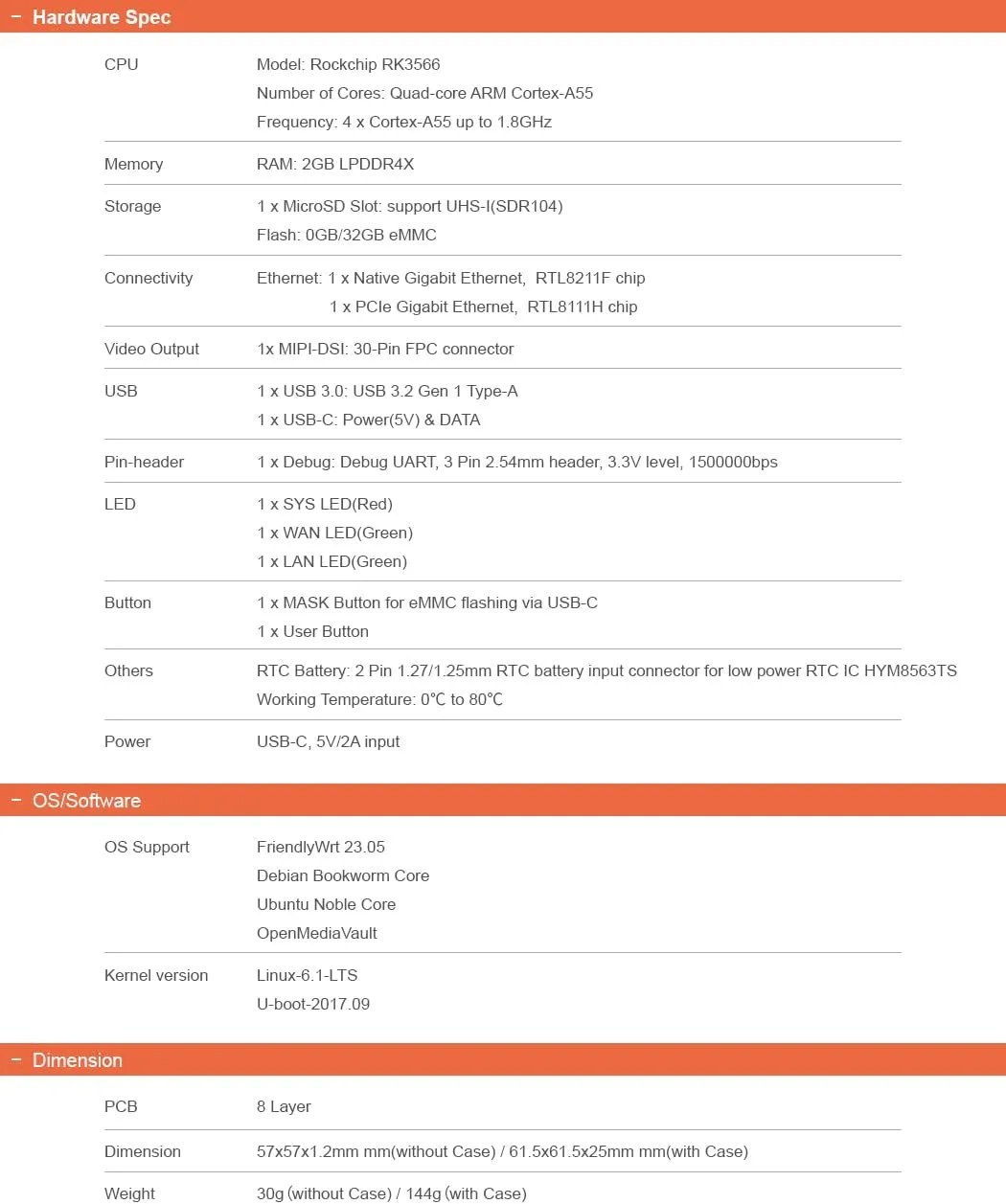

--Hardware Spec--
- CPU: Rockchip RK3566, Quad-core Cortex-A55
- RAM: 2GB LPDDR4X
- Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
- USB3.0 Host: Type-A x1
- Storage: MicroSD Slot x 1, and on-board 32GB eMMC
- Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
- LED: LED x 3
- RTC: One low-power RTC, support backup battery input
- Buttons: 1x User BUtton, 1x MASK button for eMMC flashing via USB-C
- Display: 1x MIPI-DSI 30-Pin FPC connector
- PCB Size: 57*57*1.2mm
- Power supply: USB-C 5V/2A input
- Temperature measuring range: 0℃ to 80℃
- OS/Software: U-boot，Ubuntu-Core，Debian-Core，OpenMediaVault, OpenWrt
-Package Content-
1x Nanopi R3S Mini Router
