Servos
Specification:

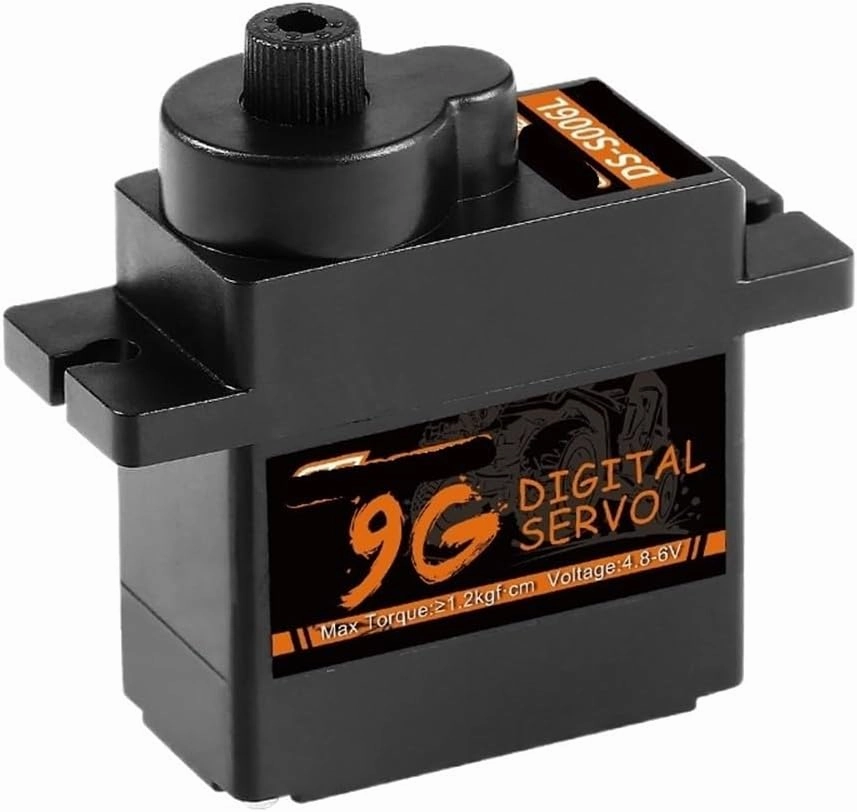

Product Name: S006L
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.00kgf.cm; 6.0V1.20kgf.cm
No-load speed: 4.8V0.14s/60°; 6.0V0.12s/60°
Stalled rotor current: 4.8V550mA; 6.0V650mA
Current consumption* (no load): 4.8V 50mA; 6.0V60mA
Maximum action travel angle: 180°±10°(500~2500s)
Dead zone width: 4us
Mechanical limit angle: 360°
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: plastic gear
Weight: 9 g
Dimensions: 27.3×12×23mm
Connector cable length: JR 250±5mm
Package Included:
1 * 9G digital servo
1 * Servo Arm Accessories
