- 𝟓𝟗" 𝐀𝐂 𝐑𝐄𝐅𝐑𝐈𝐆𝐄𝐑𝐀𝐍𝐓 𝐂𝐇𝐀𝐑𝐆𝐈𝐍𝐆 𝐇𝐎𝐒𝐄𝐒: 59" AC Refrigerant Charging Hoses with 1/4’’ SAE female flare thread, for R410A, R134A, R22, R12, R502 system, maximum working pressure: 500 PSI, burst pressure: 2500 PSI, length 59"/150 cm. Red hose for high, blue hose for low, yellow hose for charging.
- 𝐇𝐕𝐀𝐂 𝐑𝐄𝐅𝐑𝐈𝐆𝐄𝐑𝐀𝐍𝐓 𝐆𝐀𝐔𝐆: AC Diagnostic 3-way manifold gauge with high and low pressure gauge low and high pressure switch valve thread are 1/4’’ thread, with 3 way low, high and low charging servicing port. High pressure gauge working pressure: 0-500 PSI, low pressure gauge working pressure: 0-350 PSI.
- 𝐑𝟏𝟑𝟒𝐀 𝐂𝐎𝐔𝐏𝐋𝐄𝐑𝐒 𝐊𝐈𝐓: R134A quick couplers kit with red high pressure and blue low pressure quick connector, 1/4" SAE male x High pressure 16mm, 1/4’’SAE male x low pressure 13mm R134A quick coupler.
- 𝐁𝐑𝐀𝐒𝐒 𝐓𝐀𝐍𝐊 𝐀𝐃𝐀𝐏𝐓𝐄𝐑: R134A brass refrigerant tank adapter 1/4" SAE male X 1/2’’SAE female size thread can tap or oil injector to adapt between R12, R22 system and R134a systems, comes with removable valve core which speeds up vacuuming the lines.

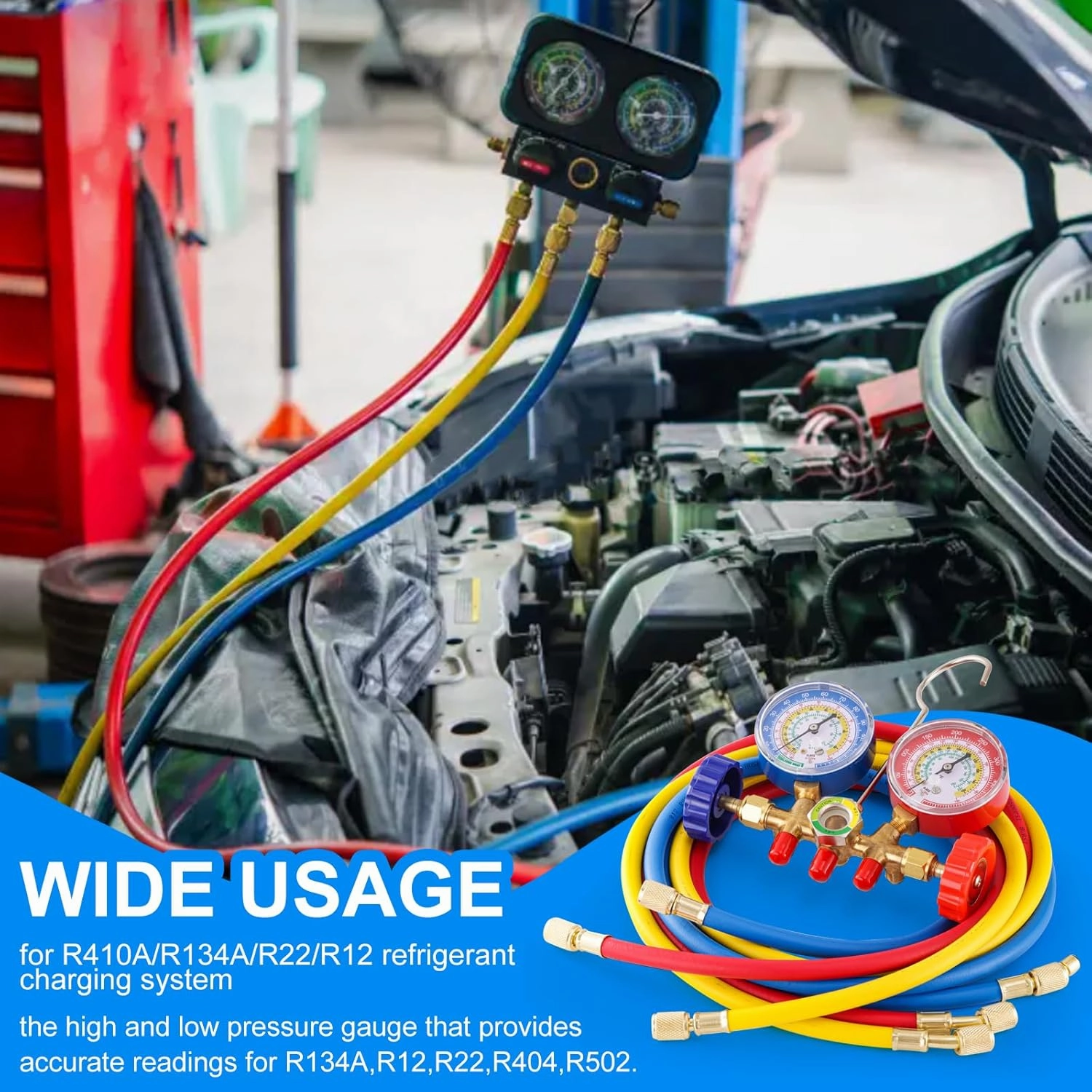

- 𝐖𝐈𝐃𝐄 𝐔𝐒𝐀𝐆𝐄: 3 Way AC manifold diagnostic gauge refrigerant charging set is made of high quality brass alloy and rubber, suitable for R410A, R22, R134A, R12 system, worked great as a replacement for your cool gauge and AC refrigerant charging system.
- 𝐄𝐀𝐒𝐘 𝐓𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋: Manifold diagnostic gauge refrigerant charging set for a DIY mini split and to vacuum the line before charging the system, the pressure gauge that provides accurate readings for R134A, R22, R12, R502 if the needle not on 0psi, please open the lid on the gauge, then adjust the knob in the gauge before using.

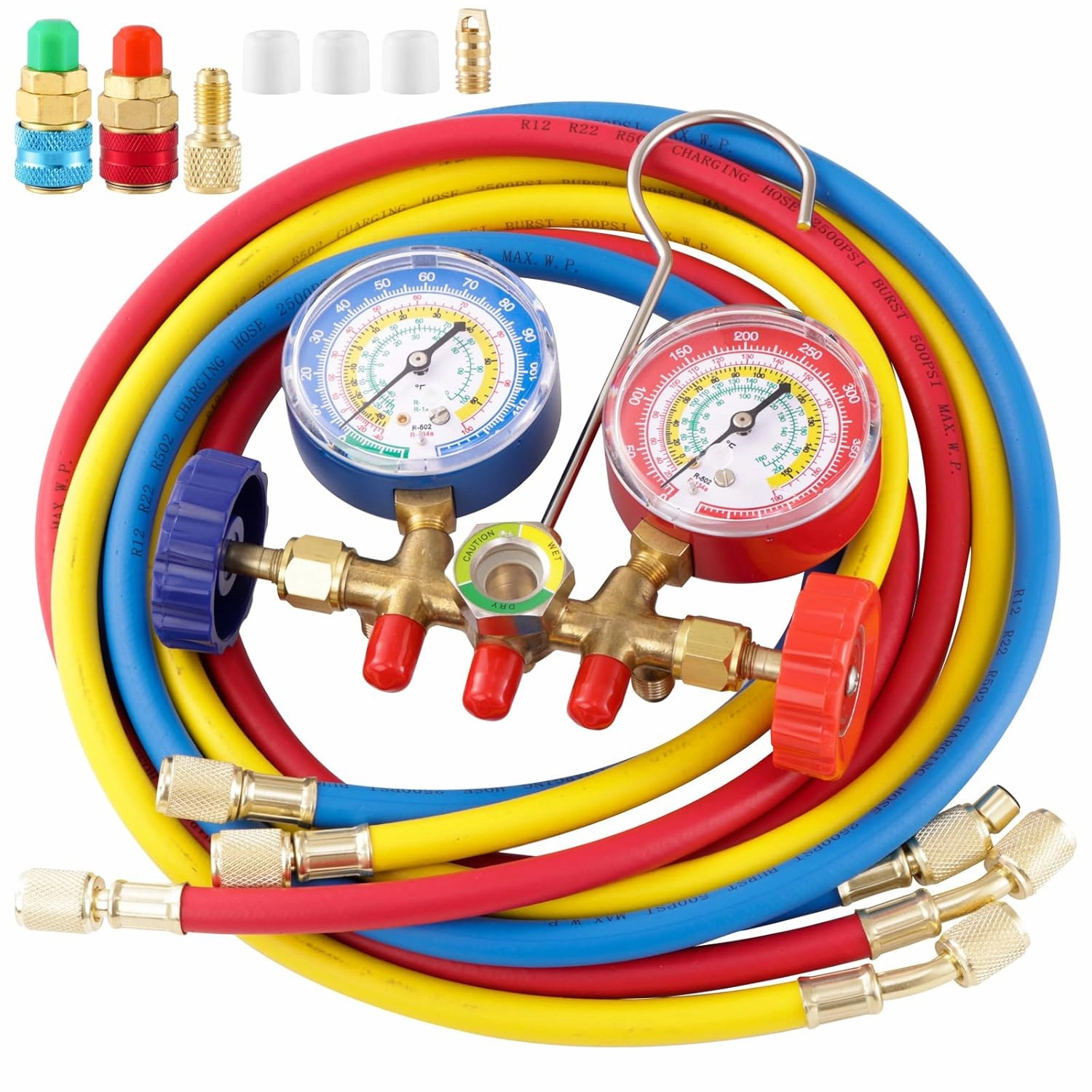

- 𝐏𝐀𝐂𝐊𝐀𝐆𝐄 𝐈𝐍𝐂𝐋𝐔𝐃𝐄: The R410A AC refrigerant charging hose kit includes 3pc 59" AC refrigerant charging hoses with 1/4’’ female thread, 1pc high and low pressure gauge with switch valve 1/4’’ thread, 1 pack high and low R134A pressure quick couplers, 1pc R134A refrigerant tank adapter(1/4" SAE Male to 1/2" SAE Female), 3pc white rubber gasket, 1pc thimble, 1pc convenient hook
- Product Dimensions : 8 x 3 x 8 inches; 2 Pounds
- Date First Available : March 6, 2025
- Manufacturer : Tigbear
- Country of Origin : China
